Tetra n-butyl titanate
condensation and addition reactions, or as a Ziegler-Natta catalyst for polymerizations. Typical reaction products include (meth)acrylic esters, polyester, plasticizer, various esters and polyurethanes. Benefits include elimination of byproducts, increased yield, easy work-up, low catalyst concentration and low toxicity.
▲ COATINGS :Glass, metals, fillers and pigments can be treated with TnBT to increase surface hardness, promote adhesion, improve resistance to heat, chemicals, corrosion and scratches, add iridescence or coloring effects or enhance light reflection.
▲ PAINTS: TnBT is useful as a binder and also can be used as an adhesion promoter or cross-linker for –OH functional polymers and other binders in paints.
▲ TIO2 PIGMENT AND FILMS:Micro- or nano-scale TiO2 pigments can be formed from TnBT, which also can also be used to create polymeric TiO2 films on surfaces via pyrolytic or hydrolytic (e.g. sol-gel) processes.
| Item | Specification | Results | Method |
|---|---|---|---|
| Appearance | Yellowy liqude | Clear | Visual inspection |
| Color at time of mfg(APHA) | 150(max) | 30 | Platinum cobalt colorimetric |
| Ti Contect(%) | 13.7-14.1 | 14.00 | Calcination weighting |
| TiO 2 content(%) | 22.8-23.5 | 23.33 | Calcination weighting |
| Specific Gravity(25℃) | 0.996 | 0.996 | Hydrometer |
| Chloride Content(PPM) | 50(max) | 8.6 | Titration |
| Product Name | Tetrabutyl titanate(TNBT) |
| CAS No. | 5593-70-4 |
| EC No. | 227-006-8 |
| UN No. | 1993 |
| Molecular formula | Ti(OC4H9)4 |
| Flashpoint | 42.5℃ |
| Boiling point | 310-314℃ |
| Freezing point | -55℃ |
| Packing | 200kgs/drum,1000kgs/IBC drum, ISO TANK |
Quality Factory Sells Top Purity 99% Tetra n-butyl titanate 5593-70-4 with Safe Delivery
- Molecular Formula:C16H36O4Ti
- Molecular Weight:340.339
- Appearance/Colour:colourless to light yellow viscous liquid
- Vapor Pressure:5.6 hPa (20 °C)
- Melting Point:-55 °C
- Refractive Index:n20/D 1.491(lit.)
- Boiling Point:310-314 °C
- Flash Point:78 °C
- PSA：36.92000
- Density:0.996 g/cm3
- LogP:5.06960
Tetrabutyl titanate(Cas 5593-70-4) Usage
|
Air & Water Reactions |
Soluble in water. Reacts with water to form butanol and titanium dioxide, the reaction is not generally thought to be hazardous. |
|
Health Hazard |
LIQUID: Irritating to skin and eyes. If swallowed will cause nausea and vomiting. |
|
Fire Hazard |
Combustible. Containers may explode in fire. May give off dense white smoke. Containers may explode. |
|
Flammability and Explosibility |
Flammable |
|
Safety Profile |
Suspected carcinogen. A poison by intravenous route. Moderately toxic by ingestion. See n-BUTYL ALCOHOL and TITANIUM COMPOUNDS. Flammable when exposed to heat or flame. To fight fire, use water, spray, foam, dry chemical. Incompatible with oxidizing materials. When heated to decomposition it emits acrid and irritating fumes. |
|
Purification Methods |
Dissolve it in *C6H6, filter if solid is present, evaporate and vacuum fractionate through a Widmer 24inch column (p 11). The ester hydrolyses when exposed to air to give hydrated ortho-titanic acid. The titanium content can be determined thus: weigh a sample (ca 0.25g) into a weighed crucible and cover it with 10mL of H2O and a few drops of conc HNO3. Heat (hot plate) carefully till most of the H2O has evaporated. Cool and add more H2O (10mL) and conc HNO3 (2mL), and evaporate carefully (no spillage) to dryness and ignite the residue at 600-650o/1hour. Weigh the residual TiO2. [Bradley et al. J Chem Soc 2773 1952, Speer J Org Chem 14 655 1949, Beilstein 1 II 398, 1 III 1515, 1 IV 1415.] |
|
|
|
|
General Description |
A water-white to pale-yellow liquid with an alcohol-like odor. About the same density as water. Flash point 170°F. Contact may irritate or cause burns. |
InChI:InChI=1/4C4H9O.Ti/c4*1-2-3-4-5;/h4*2-4H2,1H3;/q4*-1;+4/rC16H36O4Ti/c1-5-9-13-17-21(18-14-10-6-2,19-15-11-7-3)20-16-12-8-4/h5-16H2,1-4H3
5593-70-4 Relevant articles
Reaction between Magnesium and Titanium Alkoxides
Kotova, N. M.,Yanovskaya, M. I.,Turova, N. Ya.
, p. 1707 - 1713 (2008/10/08)
Interactions in the Mg(OR)2-Ti(OR)4-ROH ...
SYNTHESIS OF ALKYL ORTHOTITANATES IN TWO-PHASE SYSTEMS.
Yatluk,Suvorov
, p. 1678 - 1680 (2008/10/08)
The authors have carried out an investig...
5593-70-4 Process route
-
- 7550-45-0

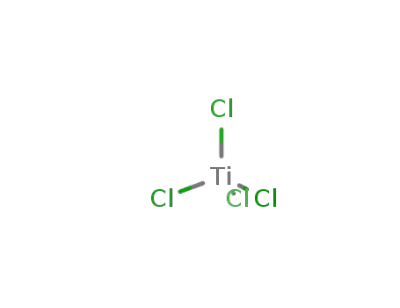

titanium tetrachloride
-
- 71-36-3

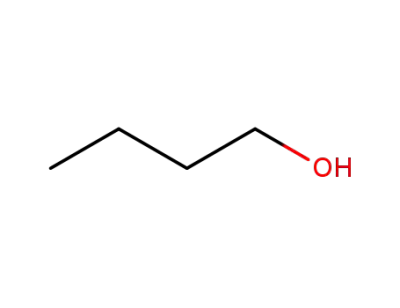

butan-1-ol
-
- 5593-70-4
titanium (IV) butoxide
| Conditions | Yield |
|---|---|
|
With NH4NO3-NH3; In toluene; soln. of TiCl4 added to alcohol with cooling and stirring, soln. added to NH4NO3-NH3 with stirring and cooling at 0-15°C; organic layer separated, solvent removed, product distilled under vacuum;
|
86% |
|
With formamide; In butan-1-ol; byproducts: NH4Cl; soln. of TiCl4 added to alcohol with cooling and stirring, HCONH2 added, mixture boiled with stirring for 5-6 h, cooled; NH4Cl separated by filtration or HCONH2 added with stirring, product distilled under vacuum;
|
66% |
|
With formamide; In n-heptane; byproducts: NH4Cl; soln. of TiCl4 added to alcohol with cooling and stirring, HCONH2 added, mixture boiled with stirring for 5-6 h, cooled; NH4Cl separated by filtration or HCONH2 added with stirring, product distilled under vacuum;
|
60% |
-
- 71-36-3
butan-1-ol
-
- 5593-70-4
titanium (IV) butoxide
| Conditions | Yield |
|---|---|
|
With ammonia;
|
|
|
With sodium; benzene;
|
|
|
With ammonia;
|
5593-70-4 Upstream products
-
71-36-3
butan-1-ol
-
2372-45-4

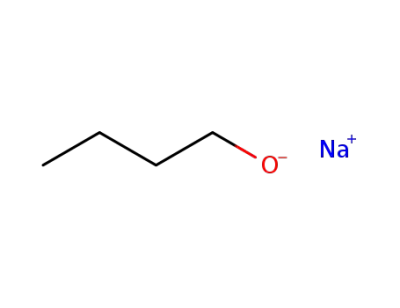

sodium butanolate
-
7440-32-6
titanium
-
7550-45-0
titanium tetrachloride
5593-70-4 Downstream products
-
925-21-3

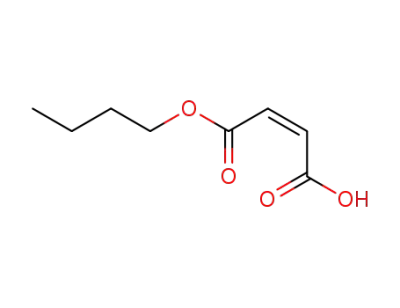

mon-n-butyl maleate
-
131-70-4

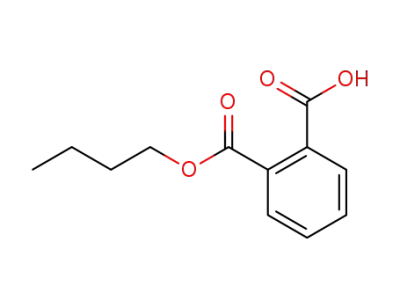

phthalic acid monobutyl ester
-
1591-02-2

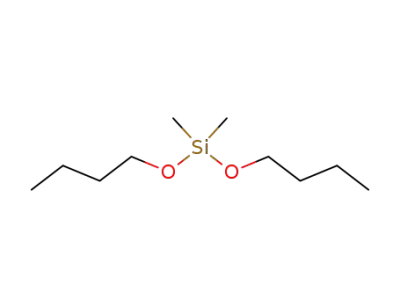

dimethyldibutoxysilane
-
54074-70-3
3-Hydroxy-3-phenyl-butyric acid butyl ester
